Kiosk floor stand printer shelf

2023-11-02

Use the following information to help you understand the dimensions and features of the printer shelf for the Genetec ClearID™ Self-Service Kiosk floor stand.

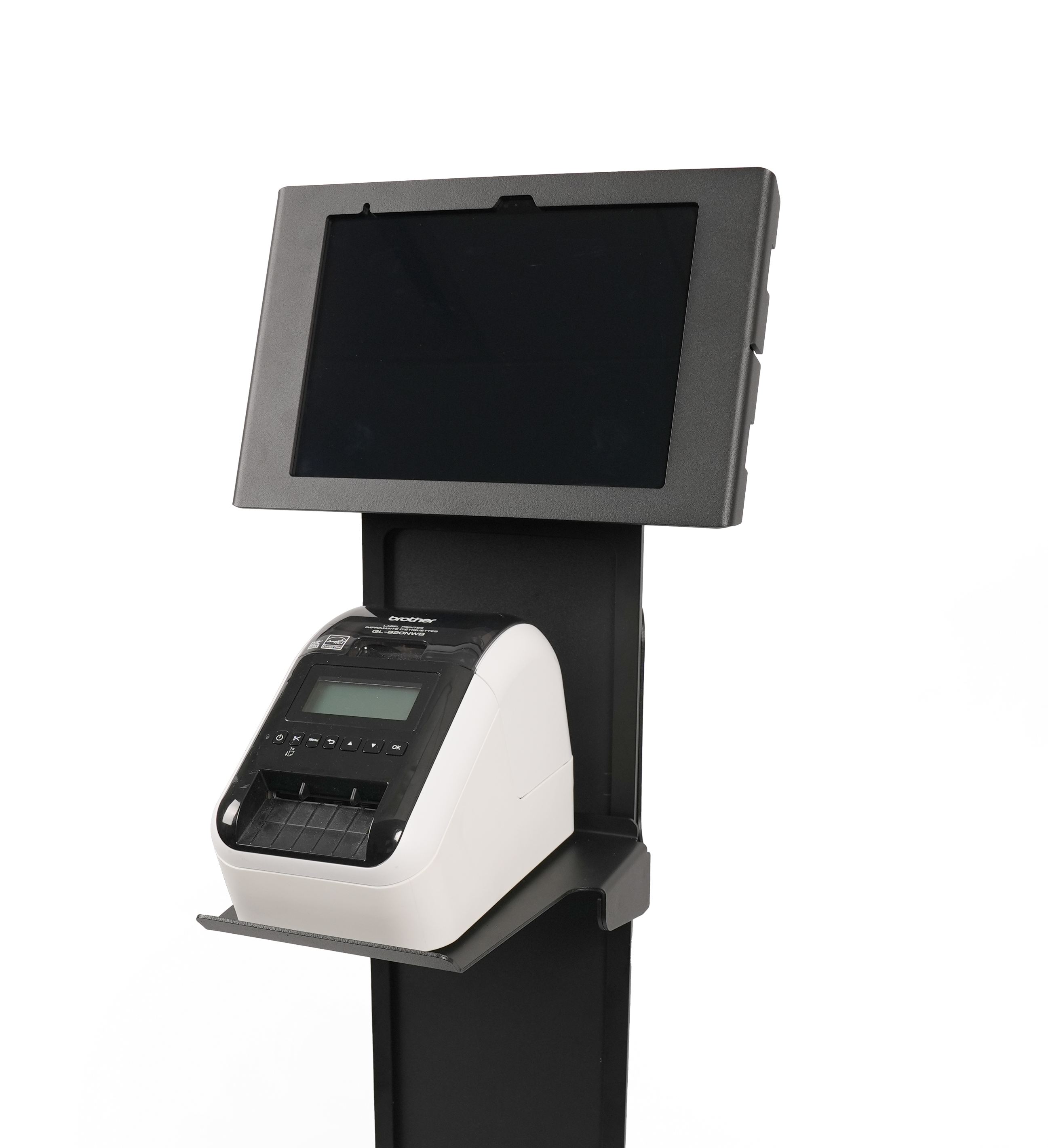

ClearID Self-Service Kiosk floor stand showing the label printer on the printer shelf.

Note: Depending on the size and model of printer that you choose. you might need to trim or modify the center panel (graphic panel) of the floor stand to allow for cable access.

Printer shelf dimensions

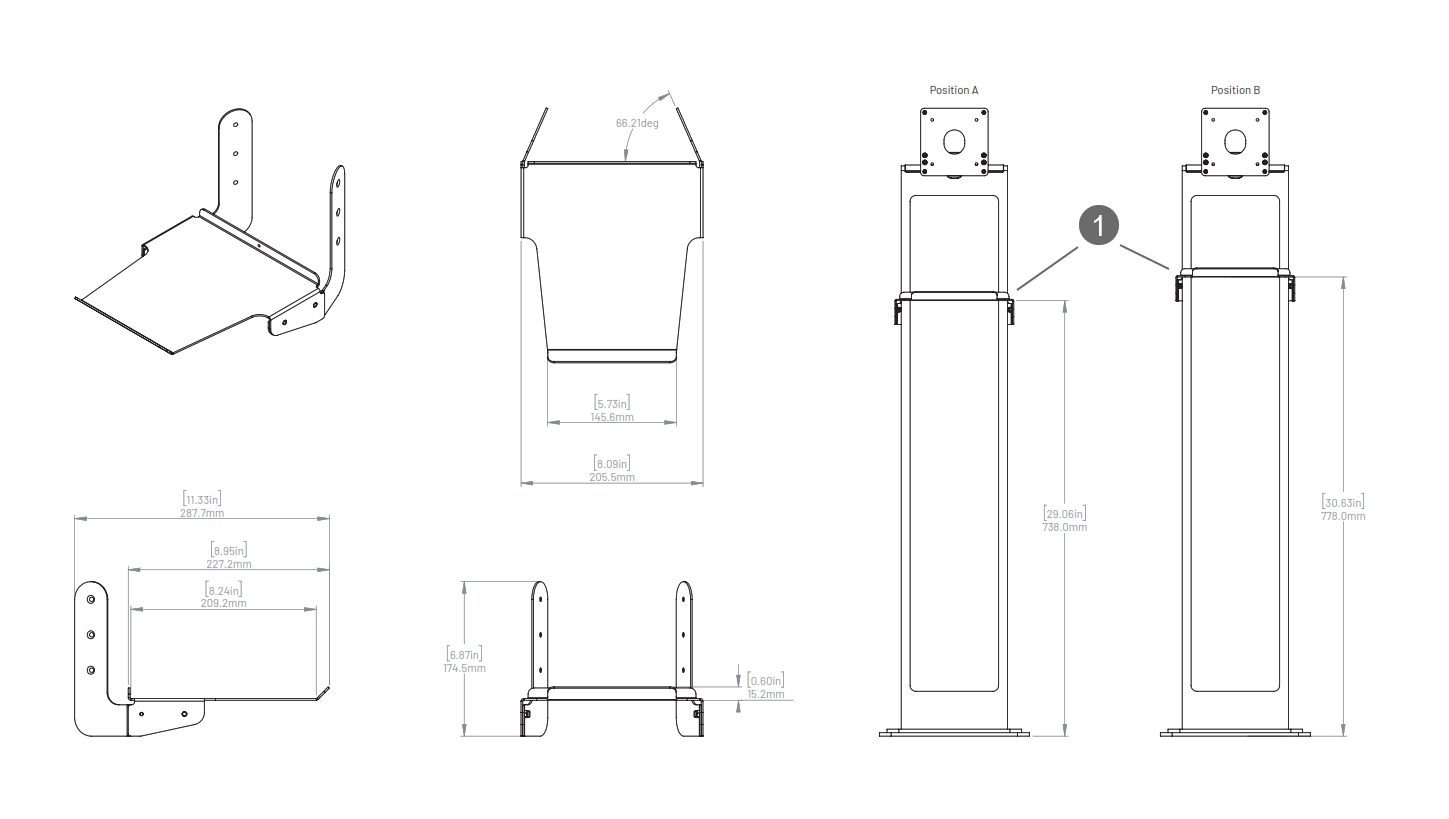

The following diagram illustrates the printer shelf dimensions.

Diagram of the ClearID Self-Service Kiosk floor stand printer shelf showing dimensions.

¹ Height adjustable printer shelf.

Printer shelf features

The printer shelf includes the following features:

Mounts to floor stand
Height adjustable
Fits various printers
